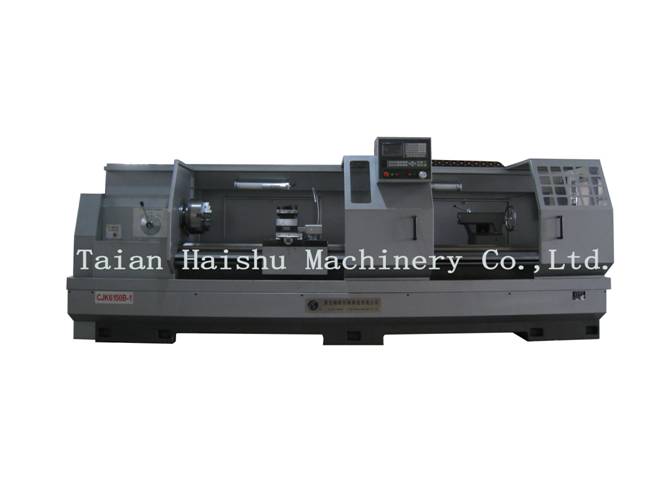

CJK6150B-1×3000 CNC lathe
CJK6150B-1*3000 CNC LATHE
1. Technical parameters
|
items |
parameters |
|
Maximum workpiece swing diameter over bed |
Φ500mm |
|
Dragged on board the maximum workpiece swing diameter |
Φ300mm |
|
Maximum length of workpiece |
2000mm, 3000mm |
|
Range of spindle speeds |
50~1700rpm |
|
Spindle bore diameter |
Φ82mm |
|
Width of guide rails |
420mm |
|
The form of spindle head |
D-8 |
|
Taper of spindle bore |
1：20 |
|
Turret Number of tool |
|
|
Tool cross-section specifications |
25mm×25mm |
|
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
|
Arbor fast forward speed |
Z: 10m/min, X: 8m/min |
|
Tailstock quill taper |
MT5 |
|
Tailstock quill maximum moving distance |
150mm |
|
Power of main motor |
7.5KW |
|
The lathe Dimensions (L × W × H) |
3700/4700 mm×1300 mm×1750mm |
|
Lathe Net |
3600/4800kg |
2. main features
(1) Frequency stepless speed third handles, has the advantage of independent spindle and the gear shift, high torque , wide speed range, high processing efficiency, high precision, energy saving and environmental protection.
(2) Spindle diameter increases(φ82mm)。
(3) The wid2th of the bed: 420mm. The whole casting at the bed
(4) Feed of X Z axis are driven by ball screw with servo-motor
(5) the guideway use hyperacoustic quenching.
(6) Hardended and ground bed guide way coated with Turcite-B
(7) high pression ball screw, High rigid precision composite bearing structure
(8) ball screw and the guide surface combination use automatic lubrication
3. Configuration
(1)the controller system: GSK (
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
